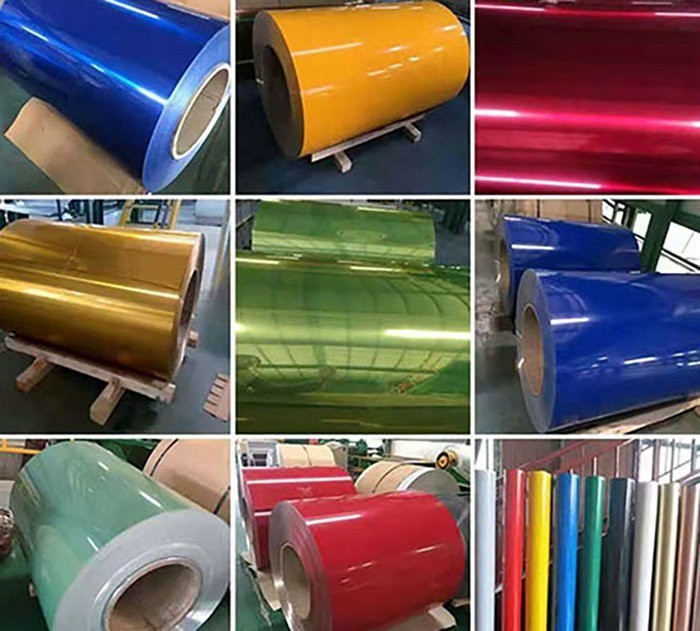

1. Basic Introduction to Color Coated Sheets

Color coated sheets, also known as Color coated sheets, are specialised building materials featuring diverse colors and patterns. They are manufactured by subjecting steel sheets as the substrate to precision processing and coating treatments. The substrate of color coated sheets can be categorised into different types, including hot-rolled steel sheets, galvanized steel sheets, and cold-rolled steel sheets. The surface coating primarily consists of various paints such as polyester, silicone-modified polyester, and polyurethane, exhibiting characteristics including high-temperature baking, high strength, and UV resistance.

This color coated sheet is not only lightweight and aesthetically pleasing but also possesses outstanding corrosion resistance, enabling direct processing. It offers an innovative raw material choice for multiple sectors including construction, shipbuilding, vehicle manufacturing, home appliances, and electrical industries, facilitating efficient construction, energy conservation, emission reduction, and environmental protection objectives.

2. Characteristics of Color Coated Sheets

The widespread application of color coated sheets stems from their unique performance advantages, primarily encompassing the following aspects:

(1) Superior Weather Resistance

The coating undergoes high-temperature curing, effectively resisting ultraviolet radiation, acid rain, and salt spray corrosion. It maintains color stability in outdoor environments over extended periods, resisting fading or chalking. Notably, color coated sheets with PVDF coatings can exceed 25 years of service life.

(2) Corrosion and Rust Prevention

The substrate undergoes galvanization or galvanized-aluminium treatment, overlaid with an organic coating for dual protection. This effectively seals out air and moisture, significantly reducing corrosion risks and extending material longevity.

(3) Lightweight yet High Strength

With a density approximately one-seventh that of steel, color coated sheets possess remarkable strength and hardness. Their light weight facilitates transportation and installation while maintaining the capacity to withstand wind pressure, impact forces, and mechanical loads.

(4) Exceptional Decorative Appeal

Color coated sheets offer diverse color options, patterns, and textures—such as woodgrain, stone-effect, and brushed metal finishes—catering to architectural designs ranging from modern minimalism to industrial retro aesthetics.

(5) Eco-Friendly and Energy-Efficient

Certain color coated sheet coatings utilise environmentally friendly paints, featuring low VOC emissions during production and aligning with green manufacturing trends. Additionally, the surface layer exhibits strong reflective properties, reducing heat absorption by buildings and lowering air conditioning energy consumption to achieve energy-saving benefits.

(6) Excellent Workability

Color coated sheets can undergo direct processing such as shearing, stamping, bending, and forming. Their high adaptability satisfies diverse complex engineering design and manufacturing requirements.

3. Applications of Color Coated Sheets

(1) Building Facades

Color coated sheets find their most extensive application in architectural exterior cladding. Their diverse range of colors and patterns lends buildings a heightened sense of dimension and artistic appeal. Whether adorning modern high-rise structures, industrial plants, commercial complexes, or residential buildings, these facades deliver a contemporary, durable finish. Concurrently, their fire-resistant, corrosion-resistant properties and robust mechanical characteristics effectively enhance structural safety and longevity.

(2) Roofing Systems

Color coated sheet roofing is extensively employed in large-span roofing projects for residences, factories, stadiums, and exhibition halls due to its waterproofing, corrosion resistance, and wind load capacity. Its lightweight nature reduces structural loads, while thermal and acoustic insulation significantly enhance living and operational comfort. Furthermore, Color coated sheet roofing offers notable energy-saving benefits, making it suitable for large-scale implementation.

(3) Interior Decoration

With the rise of green decoration concepts, color coated sheets are increasingly entering interior applications. They can be used to create decorative components such as ceilings, partitions, feature walls, cabinets, and furniture. Their smooth surface, combined with moisture resistance, fire retardancy, and ease of cleaning, makes them particularly suitable for spaces with high humidity requirements, such as kitchens and bathrooms. Color coated sheets in various colors and textures can also create diverse interior styles, enhancing spatial aesthetics.

(4) Transportation and Vehicle Manufacturing

Color coated sheets are employed in manufacturing automobile bodies, shipping containers, refrigerated trucks, box vans, and railway carriages. Their superior corrosion resistance withstands external environmental factors like rainwater and salt spray, thereby extending vehicle service life. Furthermore, the lightweight nature of these sheets contributes to reduced energy consumption, aligning with the contemporary trend towards greener, lighter-weight transport solutions.

(5) Home Appliances and Electrical Industry

Color coated sheets play a significant role in the home appliance sector, featuring in refrigerator casings, washing machine housings, air conditioner covers, water heaters, and microwave ovens. Their surface coatings not only offer vibrant colors but also provide scratch resistance, rust prevention, and moisture protection, thereby extending appliance lifespans. Furthermore, these sheets are utilised in electrical cabinets and lift wall panels, enhancing overall safety and aesthetic appeal.

(6) Shipbuilding and Marine Engineering

Color coated sheets are favoured in ships, offshore platforms, and port facilities due to their excellent salt spray resistance and corrosion protection. Particularly, sheets with aluminium-zinc-coated substrates paired with highly weather-resistant coatings significantly extend the service life of marine structures while reducing maintenance costs.

4. Advantages and Disadvantages of Color Coated Sheets

- Advantages:

Superior waterproofing, anti-corrosion, moisture resistance, and fireproofing properties enhance the durability and safety of buildings and equipment.

Aesthetically pleasing appearance with diverse color options; customisable patterns and textures to meet personalised design requirements.

Lightweight yet high-strength, facilitating convenient transportation and construction, suitable for rapid large-scale installation.

Long service life, typically 15–30 years under normal conditions, with low maintenance expenses.

Compliance with environmental and energy-saving standards, qualifying as a green building material.

- Disadvantages:

Higher cost compared to traditional building materials, resulting in greater initial project investment.

As a lightweight material, it exhibits relatively weaker impact and seismic resistance, unsuitable for extreme stress environments.

Improper installation or inadequate maintenance may cause scratches or peeling of the color coating, thereby diminishing its protective efficacy.

5. Maintenance and Care of Color Coated Sheets

(1) Regular Cleaning

- Clean surfaces with water or a neutral detergent to prevent prolonged accumulation of dust, grease, and chemical deposits.

- Avoid using strong acids, strong alkalis, or abrasive brushes to prevent scratching the coating.

(2) Preventing Scratches and Mechanical Damage

- During transportation, installation, or subsequent construction, avoid impacts or scratches from hard objects.

- Promptly repair minor scratches to prevent rust propagation.

(3) Enhanced Corrosion Prevention

- Regularly inspect joints and screw areas to ensure waterproof seals remain intact.

- In coastal or heavily polluted industrial zones, shorten maintenance intervals and reinforce surface protection.

(4) Proper Handling and Storage

- Store color coated sheets in dry, well-ventilated environments, shielding from rain and prolonged stacking.

- Avoid direct contact with chemicals.

(5) Tips for Extending Service Life

- Regularly touch up with specialised coating repair agents.

- Apply UV-resistant protective films to delay fading and ageing.

6. Market Prospects and Development Trends

With accelerating global industrialisation and urbanisation, demand for Color coated sheets continues to rise. According to the World Steel Association, annual demand growth remains between 6% and 8%, with the Asia-Pacific region as the primary market.

Future trends will primarily manifest as:

- Environmental sustainability: Adopting low-VOC coatings and renewable substrates to advance sustainable development.

- High Performance: Developing ultra-weather-resistant, antibacterial, self-cleaning, and heat-insulating Color coated sheets to meet premium market demands.

- Multifunctionality: Through technological upgrades, enabling color coated sheets to combine decorative, protective, and energy-saving functions.

- Personalised Customisation: Offering expanded color palettes, patterns, and surface treatments to satisfy diverse consumer preferences.

- Smart Manufacturing: Enhancing product consistency and production efficiency via automated production lines and intelligent inspection systems.

Color coated sheets, with their aesthetic appeal, durability, environmental friendliness, and lightweight yet high-strength properties, have permeated multiple industries including construction, transportation, home appliances, and shipbuilding. They have become an indispensable new material in modern manufacturing and architecture. As technological advancements and market demands continue to evolve, Color coated sheets will play an increasingly vital role in future development. They will not only offer greater choice for construction and industry but also contribute significantly to achieving green energy-saving and sustainable development objectives.
