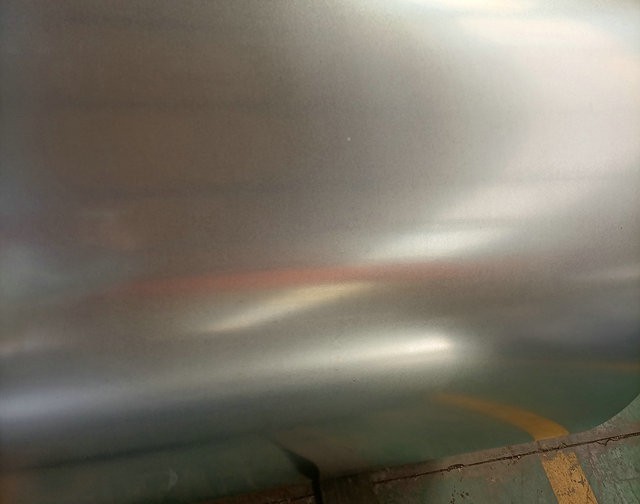

In daily life, we can see the presence of galv steel sheet s everywhere. Whether it is steel structures used for building frames on construction sites, electrical enclosures used in households, or traffic barriers commonly seen on roads, galv steel sheet s may be used. When we see these sturdy structures, we cannot help but ask: Is galv steel sheet  sturdy? After all, its durability directly affects the service life of these facilities and our safety. In fact, galv steel sheet s can provide reliable protection with their "sturdy" characteristics and have become an indispensable basic material in modern engineering. Next, let's delve into the strength of galv steel sheet s together.

1. Material foundation: Collaborative protection of steel matrix and zinc layer

The "sturdiness" of galv steel sheet  first comes from its double-layer structural design:
(1) Steel matrix: Low carbon steel (such as Q235, Q345) or high-strength steel (such as DP steel, TRIP steel) is usually used, with a tensile strength of 400-800MPa and a yield strength of 235-550MPa. It can withstand large external forces without plastic deformation. For example, galvanized high-strength steel is used for car B-pillars, which can absorb more than 80% of the impact energy in collision tests.

(2) Zinc layer protection: A 0.02-0.3mm thick zinc layer is formed on the surface of steel through hot-dip galvanizing (SGCC) or electroplating galvanizing (SECC) processes. The melting point of zinc (419.5 ℃) is lower than that of iron (1538 ℃), and it preferentially oxidizes in corrosive environments, forming a dense zinc oxide film that prevents oxygen and water molecules from contacting the steel substrate. Experiments have shown that galvanized layers can reduce the corrosion rate of steel substrates by over 90%.

2. Process strengthening: from metallurgical bonding to surface treatment

The "solidity" of galv steel sheet  is further improved through process optimization:
(1) Hot dip galvanizing process: The steel plate is immersed in a molten zinc solution at 450 ℃, where zinc and iron undergo diffusion reactions to form a zinc iron alloy layer (thickness ≥ 10 μ m). This layer is metallurgically bonded to the steel substrate, with an adhesion force of 5-10MPa, much higher than the physical adhesion of electroplated zinc (0.5-2MPa), and is not easily detached in vibration and impact environments. For example, galv steel sheet s used for wind turbine tower tubes can maintain structural stability even under temperature differences of -40 ℃ to 80 ℃ after hot-dip galvanizing.
(2) Alloying treatment: After hot-dip galvanizing, rapid cooling is carried out to form FeZn7 phase (γ phase) in the zinc layer, which increases the hardness to HV180-220 and improves the wear resistance by 30%. The galv steel sheet  used for car chassis can resist sand and gravel impact through this process, and there is no perforation after 100000 kilometers of driving.

(3) Surface coating: Apply epoxy resin, polyester powder, etc. on the surface of the zinc layer to form a protective film with a thickness of 0.05-0.1mm. The salt spray resistance test time exceeds 5000 hours. If galvanized color coated panels are used for the exterior walls of buildings, after 20 years of outdoor exposure, the coating integrity rate still reaches over 95%.

3. Mechanical performance: Strength advantage supported by data

The "solidity" of galv steel sheet  can be quantified by key indicators:
(1) Tensile strength: Ordinary galv steel sheet  (SGCC) has a tensile strength of 400-550MPa, while high-strength galv steel sheet  (such as DP600) can reach over 600MPa, which is nearly twice that of aluminum alloy.
(2) Yield strength: Q235 galv steel sheet  has a yield strength of 235MPa, and Q345 galv steel sheet  reaches 345MPa, which can meet the bearing requirements of building structures and vehicle frames.
(3) Impact toughness: In a low temperature environment of -20 ℃, the impact toughness of galv steel sheet  still remains 15-30J, much higher than the 5-10J of ordinary carbon steel, suitable for engineering in cold regions.

(4) Fatigue life: Under alternating stress (such as bridge vibration), the fatigue limit of galv steel sheet  can reach 200MPa, which is 1.5 times that of ordinary steel plate.

4. Application Verification: From Extreme Environments to Long Term Service

The "solidity" of galv steel sheet s has been widely verified in practical engineering:
(1) Bridge engineering: The Hong Kong Zhuhai Macao Bridge uses galv steel sheet s with a thickness of 8-12mm. After 10 years of seawater corrosion, the remaining thickness of the zinc layer is still ≥ 60 μ m, and the structure has no deformation.
(2) Automobile manufacturing: The Tesla Model 3 body is made of galvanized high-strength steel. In the 25% offset collision test, the A-pillar deformation was only 32mm, far below the national standard requirement of 100mm.
(3) Agricultural facilities: A livestock farm in Shandong Province uses galv steel sheet  fences. After 10 years of wind and rain, there is no rust or breakage, and the service life is three times that of ordinary color steel sheets.

(4) Energy field: Galvanized steel plates for photovoltaic brackets in Xinjiang, with a temperature difference of -30 ℃ to 50 ℃ and sandstorm environment, have no corrosion for 5 years and meet the support stability standards.

5. Comparative analysis: Galvanized steel sheet vs other material

Performance indicators	Galvanized steel sheet	Ordinary carbon steel	Aluminum alloy	Stainless steel
Tensile strength (MPa)	400-800	300-500	150-300	520-1000
Corrosion resistance	Excellent (Zinc Layer Protection)	Poor (prone to rusting)	Medium (requiring coating)	Excellent (self passivation)
Service life (years)	15-30	5-10	10-15	20-50
Cost (yuan/ton)	5000-8000	4000-6000	15000-25000	12000-20000

In summary, galv steel sheet s are undoubtedly sturdy. From the perspective of material foundation, it is based on carbon steel and already has certain strength and toughness. The presence of the galvanized layer not only does not weaken its strength, but also extends the service life of the steel plate by preventing corrosion, indirectly enhancing its durability and reliability in practical applications. In terms of manufacturing process, whether it is hot-dip galvanizing or electroplating galvanizing, strict quality control is carried out to ensure uniform coating and firm adhesion, further improving the overall performance of the steel plate. Therefore, whether in the fields of construction, automobile manufacturing, or home appliances, galv steel sheet s can meet the needs of various complex environments with their sturdy and durable characteristics.
