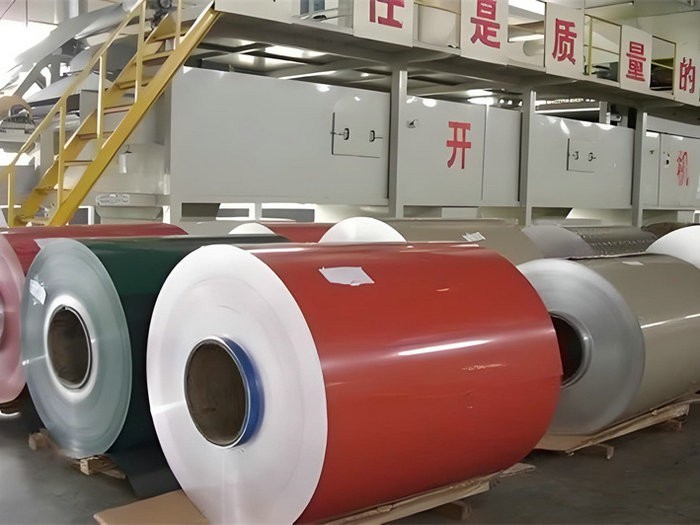

1. Definition of Color Steel Plates

Color steel plates are composite materials made by coating cold-rolled steel plates, galvanised steel plates, or aluminium sheets with organic coatings after surface treatment, followed by baking and curing. They feature lightweight, high strength, corrosion resistance, and a wide range of colors, and are commonly used in building exteriors, roofs, partitions, and other applications. This material combines the high strength and formability of steel with the decorative and corrosion-resistant properties of organic coatings, making it an ideal choice for modern building metal cladding systems.

2. Main Components of Color Steel Plates

The structure of color steel plates typically consists of three main parts: substrate, coating, and protective layer. Among these, the substrate is the core, the coating is the key, and the protective layer provides assurance.

(1) Base Material Types

The base materials for color steel plates primarily include the following categories:

Cold-rolled steel plates: High strength and smooth surface, but relatively weak corrosion resistance, commonly used in indoor or short-term applications.

Hot-dip galvanised steel plates: A zinc protective layer is applied to the steel sheet surface, significantly enhancing oxidation resistance and corrosion resistance, making it the most widely used base material currently.

Hot-dip aluminium-zinc-coated steel plates: A layer of aluminium-zinc alloy (55% aluminium, 43.5% zinc, 1.5% silicon) is applied to the steel sheet surface, offering superior weather resistance and reflectivity, with a longer service life than ordinary galvanised plates.

Electrogalvanised steel sheets: Zinc is applied to the steel sheet surface through electrolysis, resulting in a thin coating suitable for applications requiring high formability.

Among these, hot-dip aluminium-zinc-coated color-coated steel plates are the most widely used in modern architecture and industry due to their combination of durability and cost-effectiveness.

(2) Coating materials

The coating of color steel plates is the key component that confers their decorative and functional properties. Common types include:

· Polyester coating: vibrant colors, lower cost, suitable for general-purpose buildings.

· Silicone-modified polyester: excellent weather resistance and heat resistance, suitable for regions with large temperature fluctuations and harsh climates.

· High-weatherability polyester: outstanding UV resistance, commonly used in outdoor large-scale buildings.

· Fluorocarbon coating: Offers the best corrosion resistance and weather resistance, suitable for extreme environments, with a service life of over 20 years, commonly used in high-end office buildings, airports, exhibition centres, and other landmark structures.

(3) Protective Layer

To extend the service life of color-coated steel plates, a transparent protective film or special treatment layer is applied to the coating surface. This prevents scratches during transportation and construction while enhancing wear resistance and durability.

3. Characteristics of color steel plates

(1) Lightweight: Color steel plates are lightweight building materials with low density, significantly lighter than traditional brick-and-concrete building materials. This results in improved efficiency and convenience during construction and handling.

(2) Energy-efficient and environmentally friendly: Color-coated steel plates offer excellent thermal insulation and soundproofing properties, helping to maintain indoor temperatures while reducing energy consumption for heating and cooling.

(3) Weather resistance: The surface of color-coated steel plates uses advanced coating technology to enhance corrosion resistance, heat resistance, and weather resistance.

(4) Corrosion resistance: The surface of color-coated steel plates is coated with multiple layers to effectively prevent corrosion and extend the service life of the sheets.

(5) Aesthetic appeal: Color-coated steel plates come in a variety of colors and can be customised to enhance the aesthetic appeal of buildings.

(6) Durability: The material of color-coated steel plates is robust and has excellent resistance to external forces, making buildings more durable and long-lasting.

(7) Easy installation: Color-coated steel plates are quick to assemble, reducing construction time and shortening project schedules.

4. Main Applications of Color Steel Plates

Color steel plates are widely used in various fields due to their lightweight, durable, and easy-to-install characteristics:

(1) Construction Industry

- Roofs and Walls: Commonly used in the enclosing structures of large-span buildings such as industrial plants, warehouses, and sports venues, with construction efficiency improved by over 50% compared to traditional materials.

- Partitions and Ceilings: Used in office buildings, hospitals, and other facilities as partition walls, they offer both fire resistance (some models have a fire resistance rating of up to 1 hour) and sound insulation properties.

- Temporary Structures: Used in construction site temporary housing, disaster relief tents, etc., their ability to be disassembled and reused reduces costs by 30%–40%.

- Decorative applications: Certain color coated panels can be used for indoor and outdoor decoration, such as billboards and partitions.

(2) Home appliances and furniture

- The outer shells of refrigerators and washing machines are often made of color steel plates, which are rust-resistant and easy to clean.

- Furniture such as cabinets and filing cabinets use color-coated steel panels for their surfaces, offering both aesthetic appeal and durability.

(3) Transportation

- Color steel panels are commonly used for interior panels in high-speed rail and metro carriages, offering lightweight properties and compliance with fire safety standards (e.g., EN 45545-2).

- Using color-coated steel plates for truck bodies can reduce weight by 15%–20%, thereby lowering fuel consumption.

5. How to Select the Right Color Steel Plate

When purchasing color-coated steel plates, consider both the usage environment and budget:

- Base material: Galvanised steel plates offer better rust resistance, aluminium plates are lighter but more expensive, and cold-rolled steel plates require a high-quality coating.

- Coating type: Polyester coatings are suitable for general environments, while fluorocarbon coatings are recommended for long-term outdoor exposure.

- Thickness selection: The thickness of color-coated steel plates typically ranges from 0.3 mm to 1.0 mm. For industrial applications, a thickness of 0.5 mm or above is recommended, while temporary structures may use lower standards.

6. Installation and maintenance of color steel plates

The installation of color-coated steel plates requires professional personnel, especially when laying roof panels, where waterproofing must be ensured. The following points should be noted during installation:

- Ensure the frame is flat to prevent deformation of the sheets due to uneven support.

- Seal the overlaps between sheets to prevent water ingress.

- Use special screws for fixation to prevent loosening due to wind force.

For routine maintenance, if the surface of the color-coated steel sheet has accumulated dust or stains, it can be rinsed with clean water; avoid using strong acid or alkali cleaners. If coating damage is discovered, it should be repaired promptly to prevent corrosion of the base material.

7. Environmental Protection and Recycling of Color-Coated Steel Plates

Color steel plates are recyclable materials; discarded sheets can be recycled through professional processing to recover the metal base material. During production, some companies have adopted low-pollution coatings to reduce environmental impact.

8. Future Trends in Color Steel Plates

With increasing environmental requirements, color steel plates are moving towards ‘greening’:

(1) Chromium-free coating technology: Reduces hexavalent chromium pollution; the EU has mandated its implementation (refer to the REACH regulation).

(2) Use of recycled materials: Some manufacturers use recycled metal substrates, reducing carbon emissions by approximately 25%.

In summary, color steel plates are a multifunctional composite material combining strength, durability, aesthetics, and environmental friendliness. Their core structure consists of a steel sheet substrate + organic coating + protective layer, with applications spanning industries such as construction, home appliances, and transportation. When selecting products, it is important to choose appropriate materials and coatings based on actual needs, and pay attention to installation and maintenance details to extend their service life.
